Description

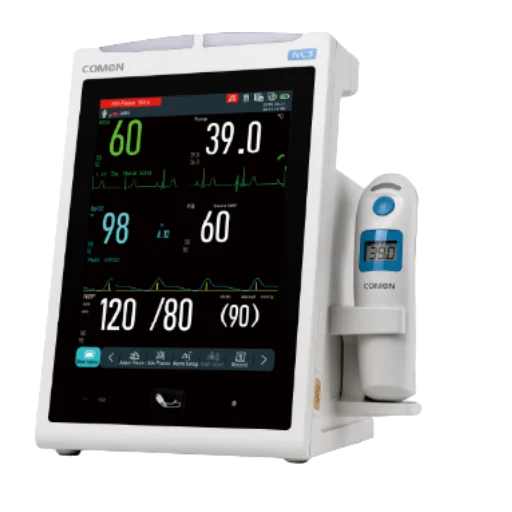

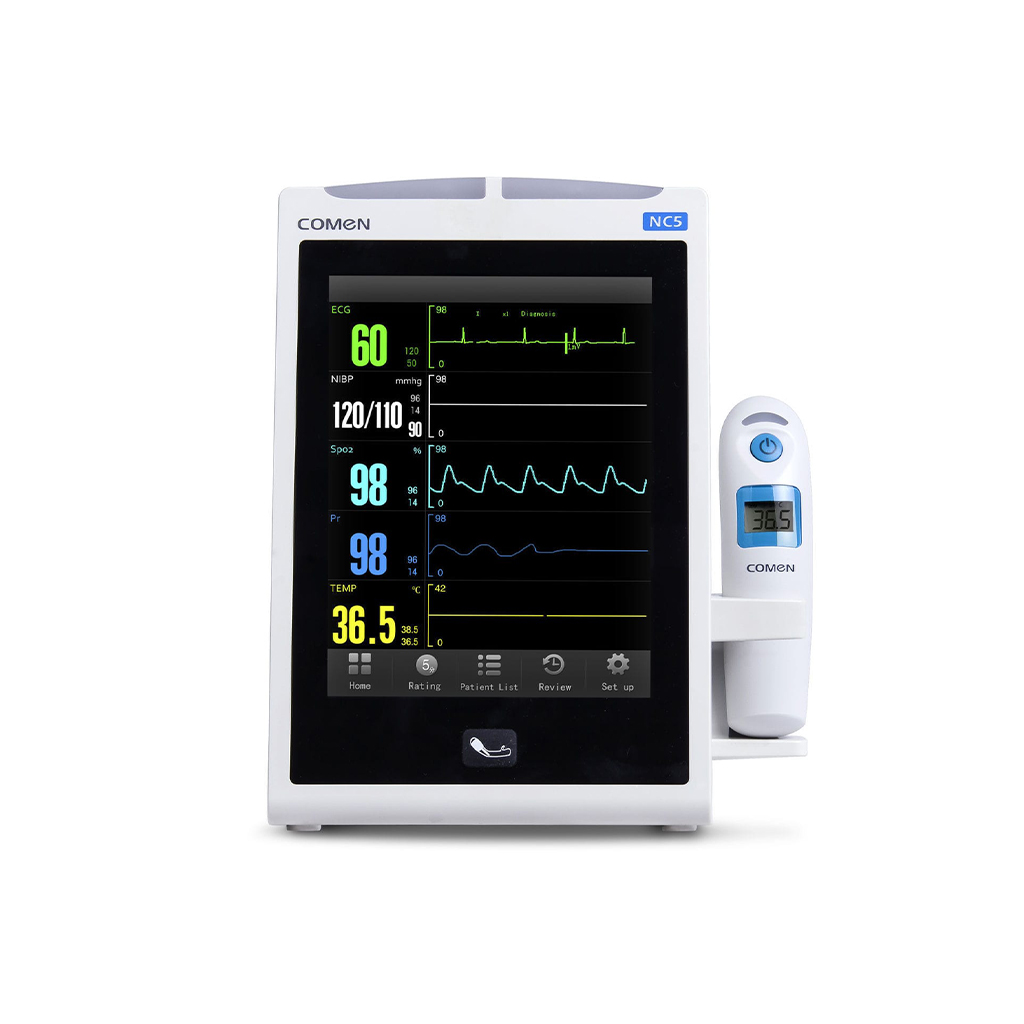

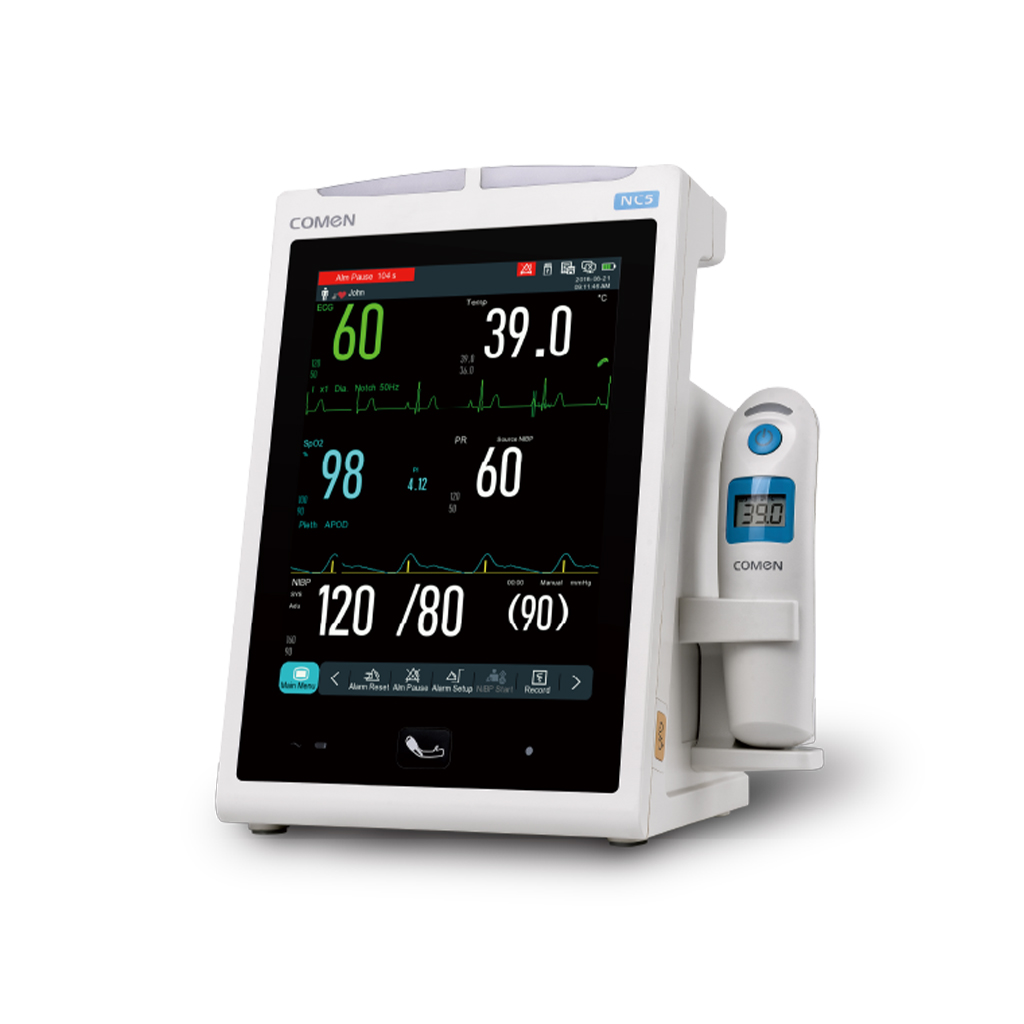

The NC5 Vital Signs Monitor is a comprehensive patient monitoring device integrating NIBP, SpO2, and pulse rate measurements. With support for optional accessories such as 3-lead ECG, SpO2, and ear temperature, it provides an advanced monitoring solution with a simple, user-friendly interface.
Standard Configuration:
- Monitoring parameters: SpO2, NIBP, and pulse rate
- 160-hour graphic and tabular trend storage for all parameters
- Spot-check and continuous monitoring modes
- Adult reusable analog SpO2 sensor: 10 ft, 12-pin
- Adult, pediatric, and neonatal NIBP tube (white): 2 m
- Reusable adult cuff: 25–35 cm
- User manual and power cord
Specifications:
- Non-contact infrared ear thermometer for reduced cross-infection risk
- 8-inch colored TFT touchscreen for clear and intuitive operation
- Measuring time: 1–2 seconds, fast and accurate
- Safety standards: ISO 13485:2016 approved, CE marking according to MDD 93/42/EEC
- Dimensions and net weight: 165 × 250 × 165 mm, 2.5 kg (excluding battery)
- Rechargeable Li-ion battery: 2200 mAh, up to 10.5 hours in use
- Battery backup time: Up to 12 hours (standby)
- Power supply: 100–240 V~, 50/60 Hz ± 1 Hz
- Indicators: Power indicator, battery indicator, operating key sound, QRS beep
- Data storage: 50 patients, data review and transfer supported
- Printing support: 25 mm/s and 50 mm/s speeds with 2-channel waveform printing
