Description

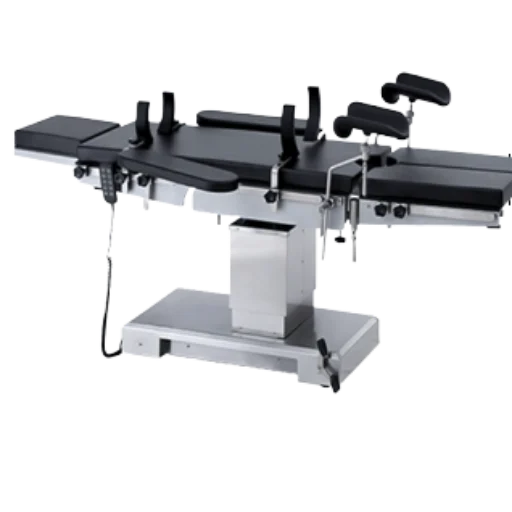

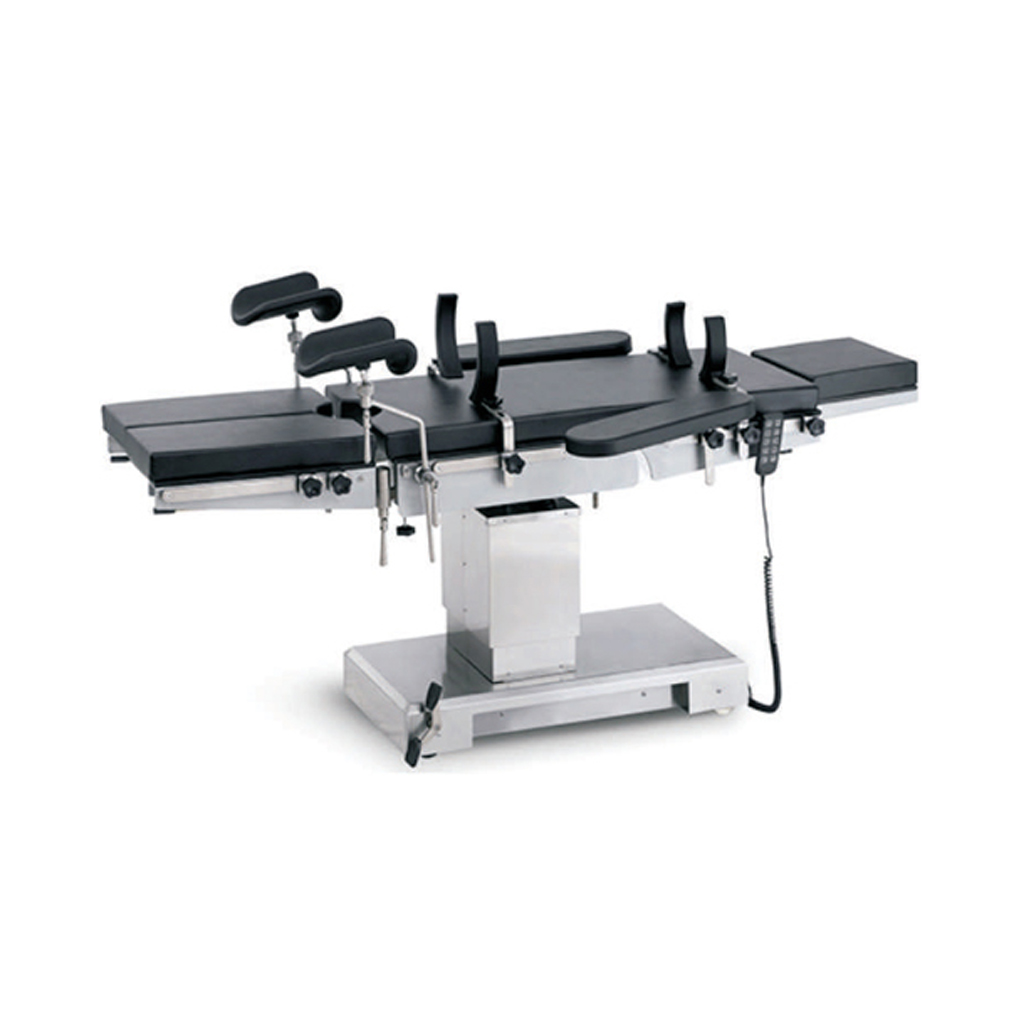

DOT-90A Electric Operating Table
Application:
DOT-90A is a fully electric operating table designed for various surgical procedures in hospital operating rooms. All table functions are controlled by imported motors, ensuring smooth, precise, and reliable operation.
Features:
- Fully electric operating table with imported motor control.
- Stable and precise adjustment for multiple surgical positions.
- Memory sponge mattress provides excellent comfort and pressure relief.
- Large capacity mattress suitable for 50–80 surgical procedures.
- C-arm compatible design with longitudinal sliding function.
- High load-bearing capacity for enhanced safety.
Technical Parameters
- Length / Width: 2000mm / 500mm
- Table height: 750mm – 1000mm
- Trendelenburg / Reverse Trendelenburg: ≥ 25° / ≥ 25°
- Lateral tilt (left / right): ≥ 20° / ≥ 20°
- Head section (up / down): ≥ 45° / ≥ 90°
- Back section (up / down): ≥ 70° / ≥ 35°
- Leg section (up / down / outside): ≥ 15° / ≥ 90° / ≥ 20°
- Sliding distance: ≥ 350mm (C-arm compatible)
- Kidney bridge lift: 100mm
- Load capacity: 250kg
