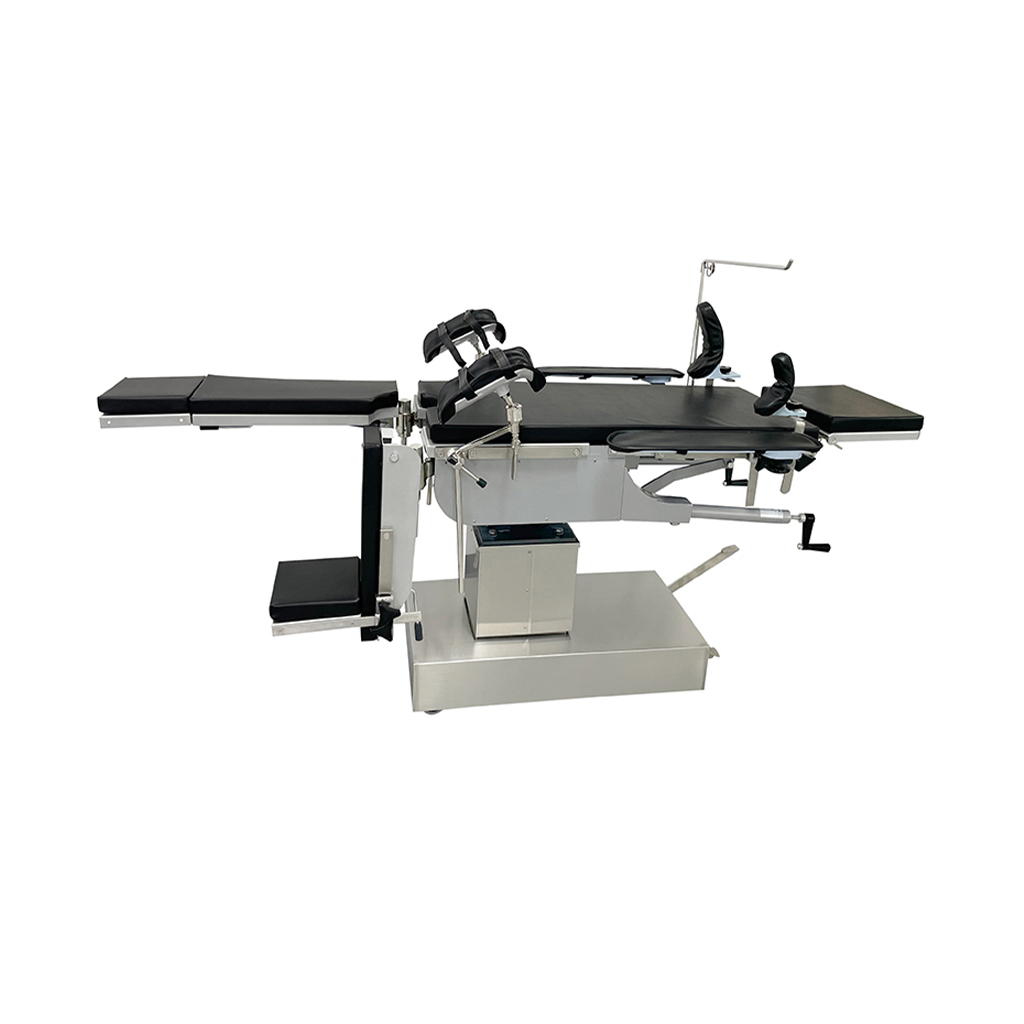

Operating Table (Head Controlled)

Operating Table (Head Controlled)

3008II is used for head surgeries, neck, thorax, abdomen, perineum, limbs, obstetrics, ophthalmology, and other operations. 3008II is single table top, leg plate is split type, all stainless steel material; which is easy to clean and rust proof. The column movements are adjustable by hydraulic. The hydraulic column is in a central position and is designed to avoid overturning. The shape of the column is concave for good stability and ergonomic to give operators maximum comfort & efficiency during long interventions. Maximum load capacity: over 250kgs.

Technical Parameters

• Table size: 2100mm x 500mm
• Min Table Height: 750mm, Max Table Height: 1000mm
• Table lifting height distance: 250mm
• Trendelenburg/Reverse Trendelenburg: ≥ 25°, Lateral tilt: ≥ 20°
• Back plate up/down adjustment: ≥80°/15°
• Head plate up/down adjustment: ≥ 30° /90°
• Leg section up/down/outwards: ≥ 15° / ≥ 90° / ≥ 90°
• Kidney bridge adjustment: ≥100mm

Configuration

• Arm support 1 pcs
• Shoulder support 2 pcs
• Leg support with belt 2 pcs
• Seamless mattress 1 set
• Waist support 2 pcs
• Anesthesic screen holder 1 pc
