Description

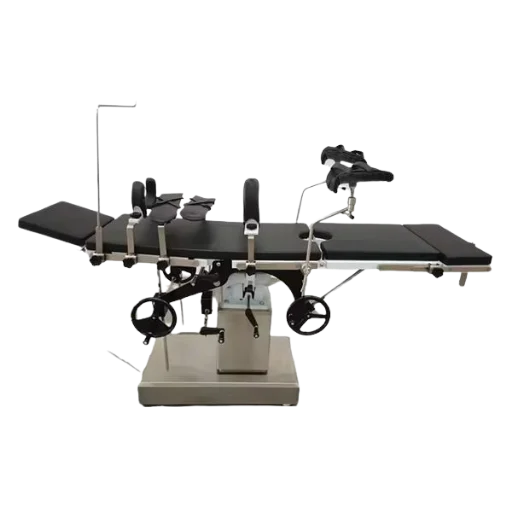

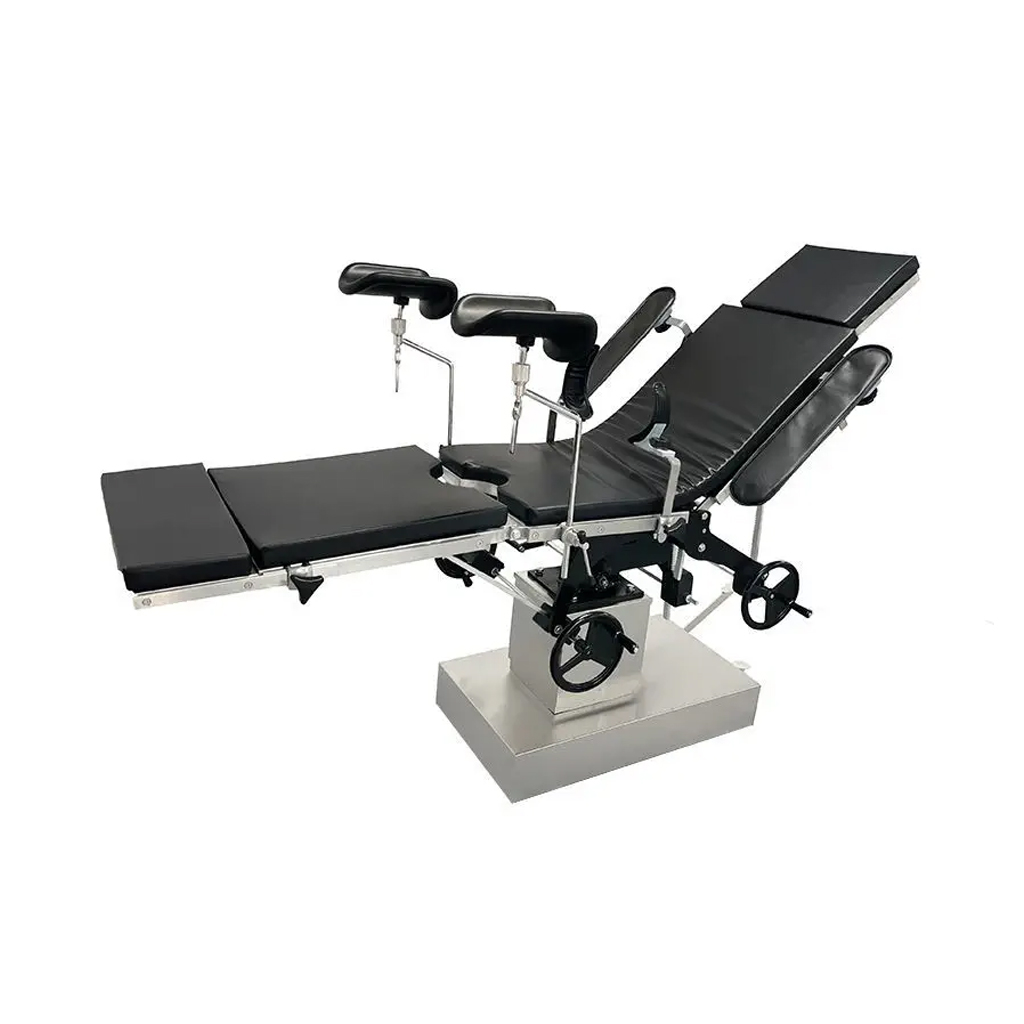

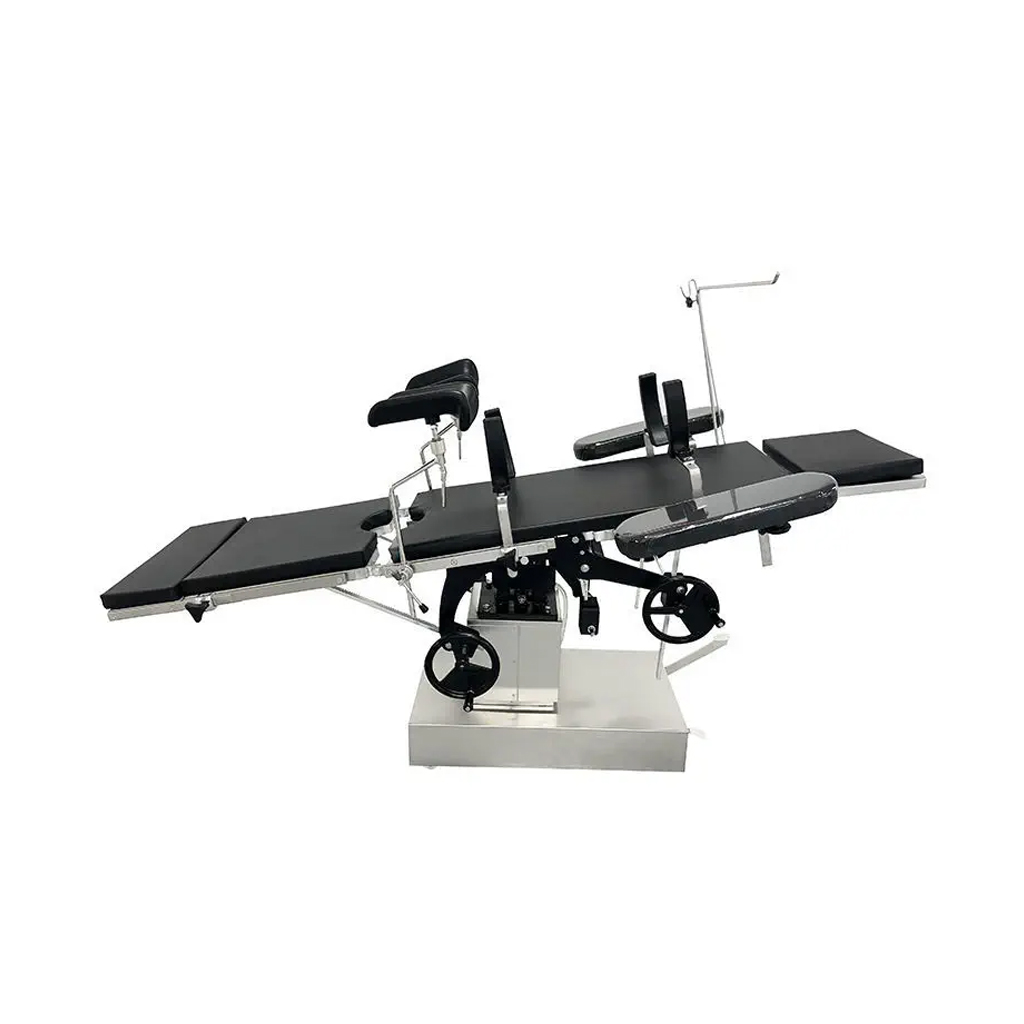

3001I Comprehensive Operating Table
Application:
3001I is used for head, neck, chest and abdominal cavity, perineum and limbs surgery, gynecology and obstetrics, ophthalmology, otolaryngology and other operations in the operating room of the hospital.
Features:
- The oil pump is used for hydraulic lifting during operation.
- Body position adjustment is controlled on both sides of the table.
- Back plate and leg plate angle adjustment realized by hand-operated worm, gear and rack mechanism.
- Table top is power coating.
- Base and shield are 304 stainless steel.
Technical Parameters
- Table size: 2100mm × 500mm
- Table height: 750mm
- Height adjustment: 250mm
- Trendelenburg / Reverse Trendelenburg: ≥ 25°
- Lateral tilt: ≥ 20°
- Back plate adjustment: ≥ 70° to -15°
- Head plate adjustment: ≥ ±45° to 90°
- Leg section (up / down / outside): ≥ 15° / ≥ 90° / ≥ 90°
- Kidney bridge adjustment: ≥ 100mm
Configuration
- Table body: 1 set
- Mattress: 1 set
- Leg support: 2 pcs
- Hand support: 2 pcs
- Anesthetic screen: 1 set
- Kidney bridge: 2 pcs
