• Air temp. servo-controlled by computer
• > 37⁰C temperature setting
• Various and self-check alarms
• Removable humidity reservoir, easy to clean
• With the transfusion shelf and tray
• RS-232 connector
• Free-step mattress tilting adjustment(option)
• Electrical requirement: ~ 220V 50Hz or ~ 230V, 60Hz
• Power consumption: ≤ 450VA
• Air mode temp. range: 25.0⁰C~ 37.0⁰C
• Air over temp. range: < 38.0⁰C
• Air mode high temp. range: 37.1⁰C~ 39.0⁰C
• High temp. mode alarm: < 40.0⁰C
• Air mode alarm: ±3.0⁰C
• Air control accuracy: ≤ 0.5⁰C
• Mattress temp. uniformity: ≤ 0.8⁰C
• Noise: ≤ 55dB(A)
Incubator, NICU

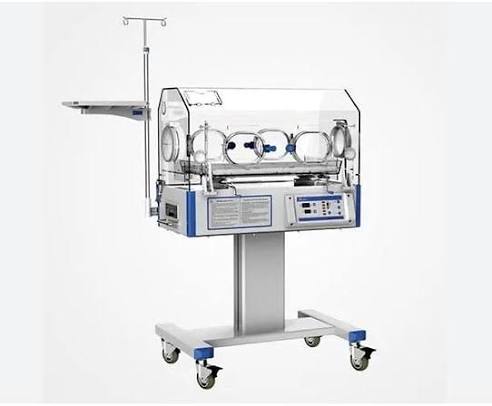

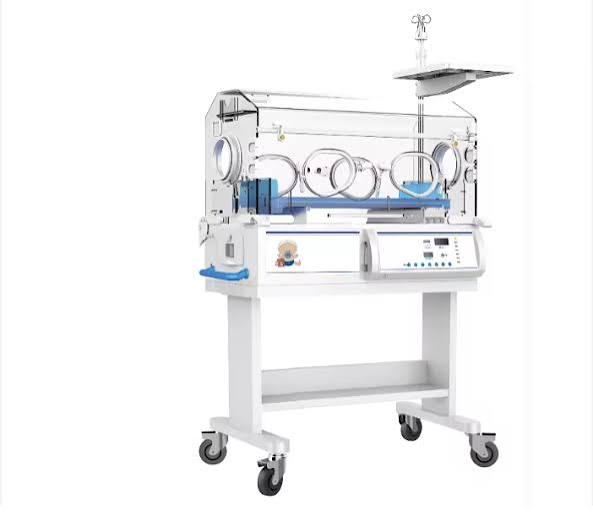

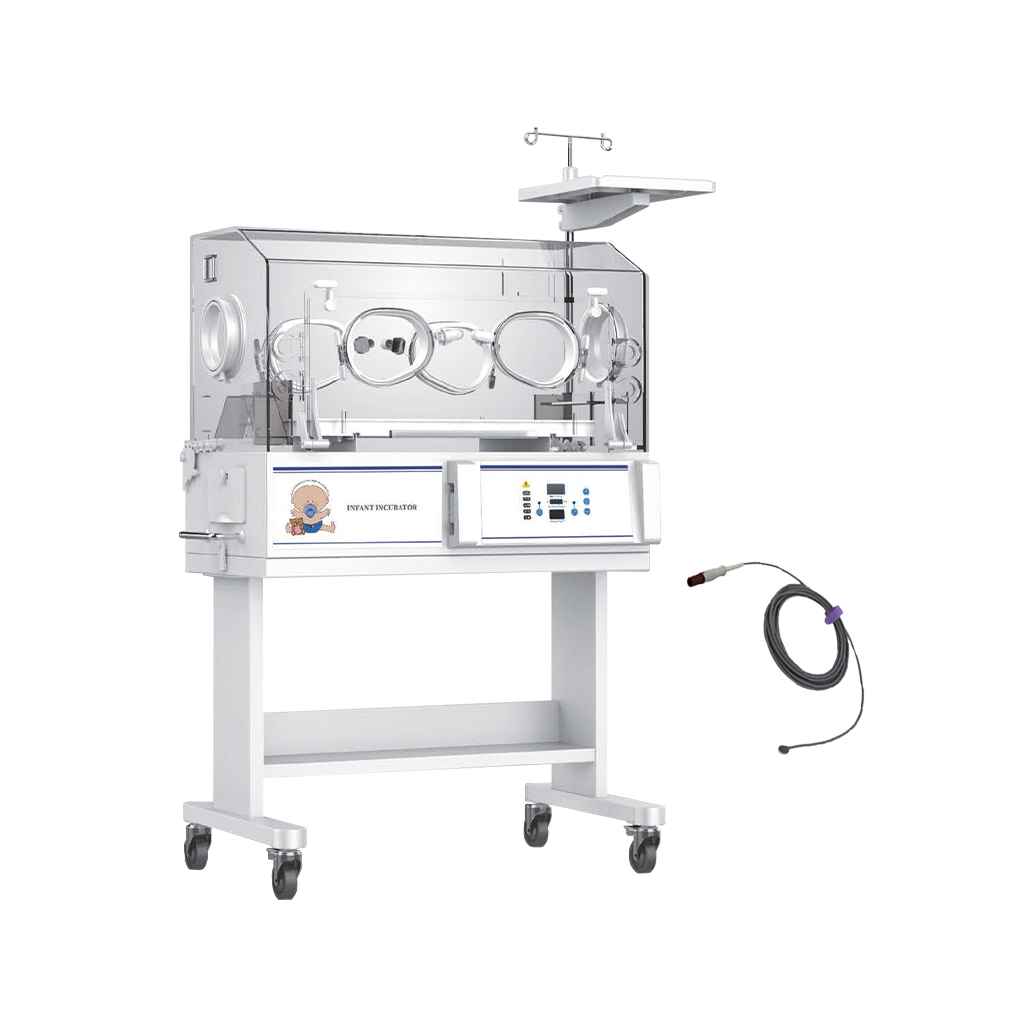

Infant incubator (4-hole)
An infant incubator with a 4-hole design is a specialized medical enclosure used in Neonatal Intensive Care Units (NICUs) to create a controlled environment for premature or ill newborns. The term “4-hole” refers to the four hand access ports—two on the front and two on the back—that enable healthcare workers to care for the baby from both sides without having to open the main hood, thereby maintaining the internal environment.
