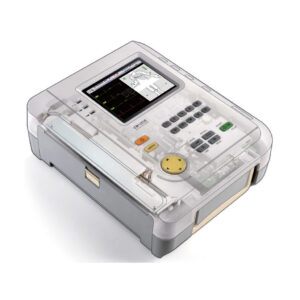

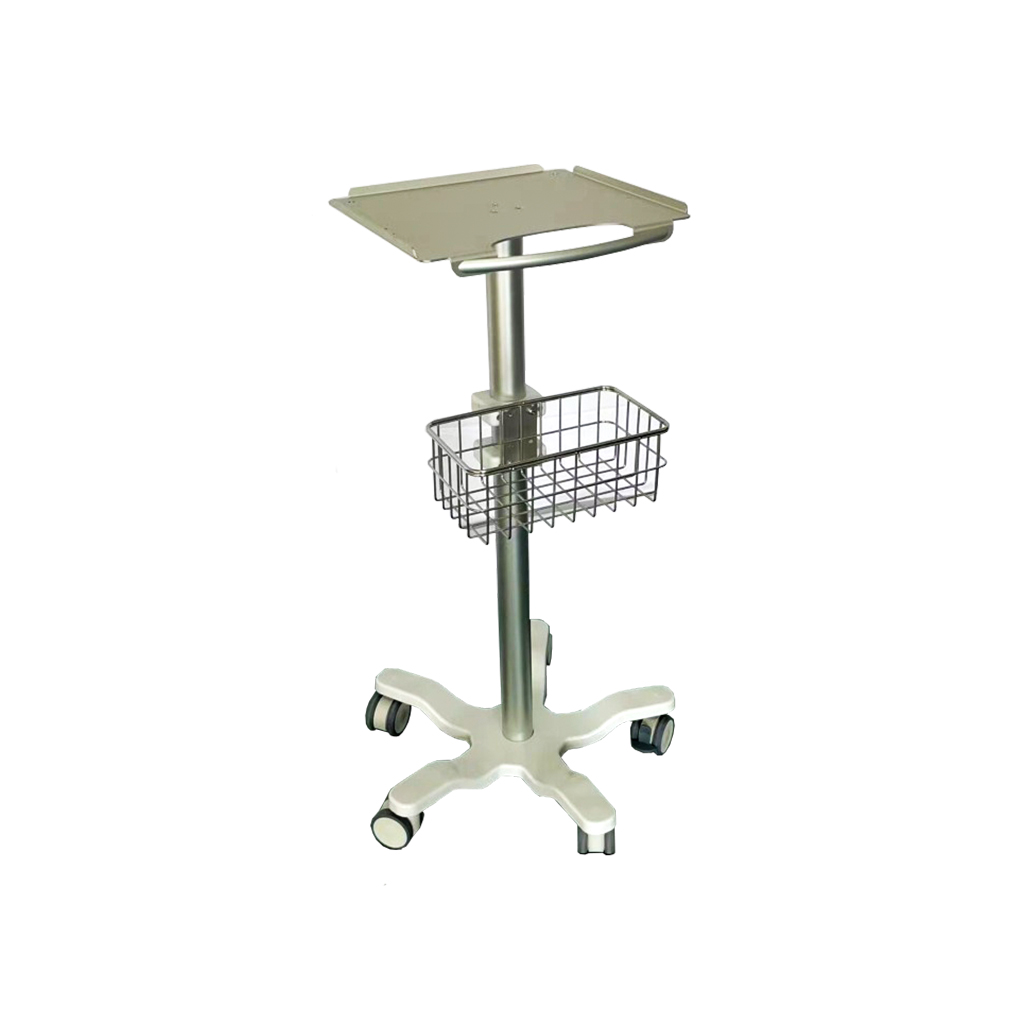

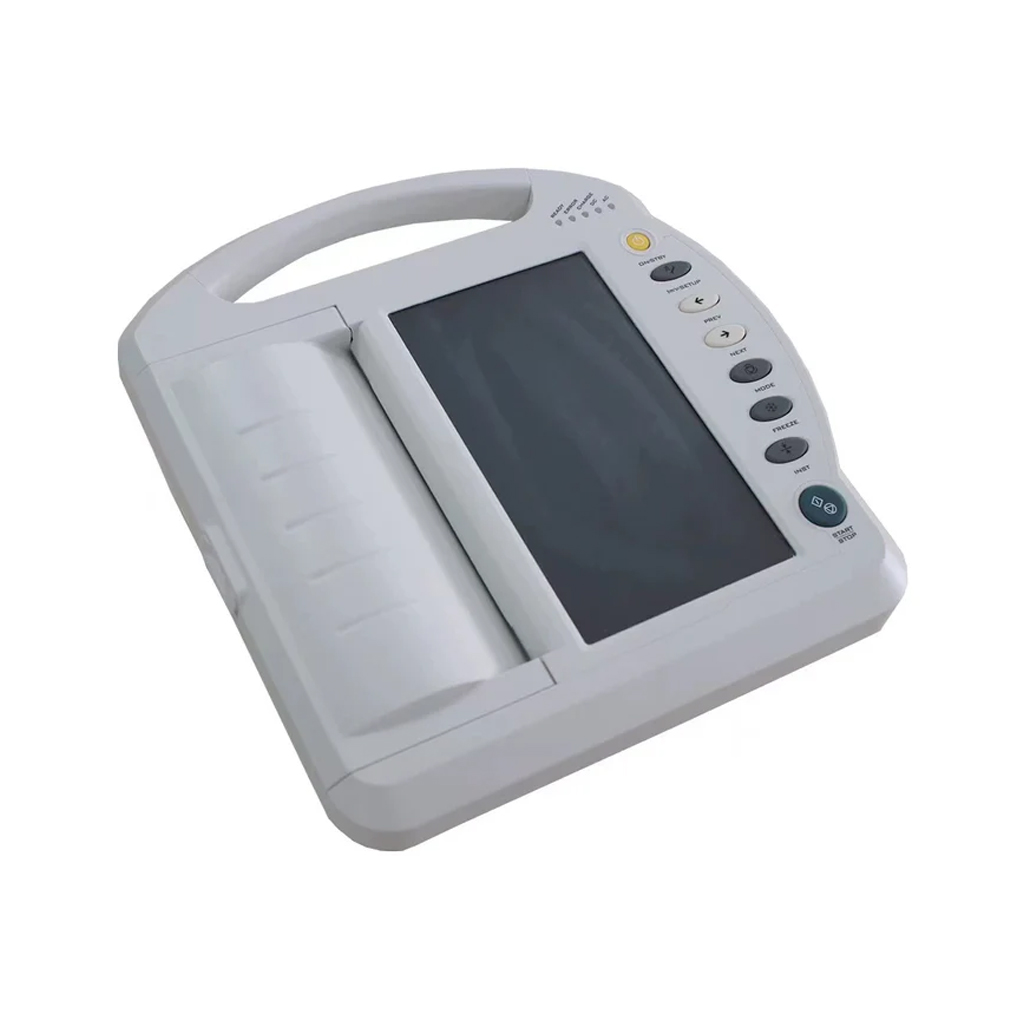

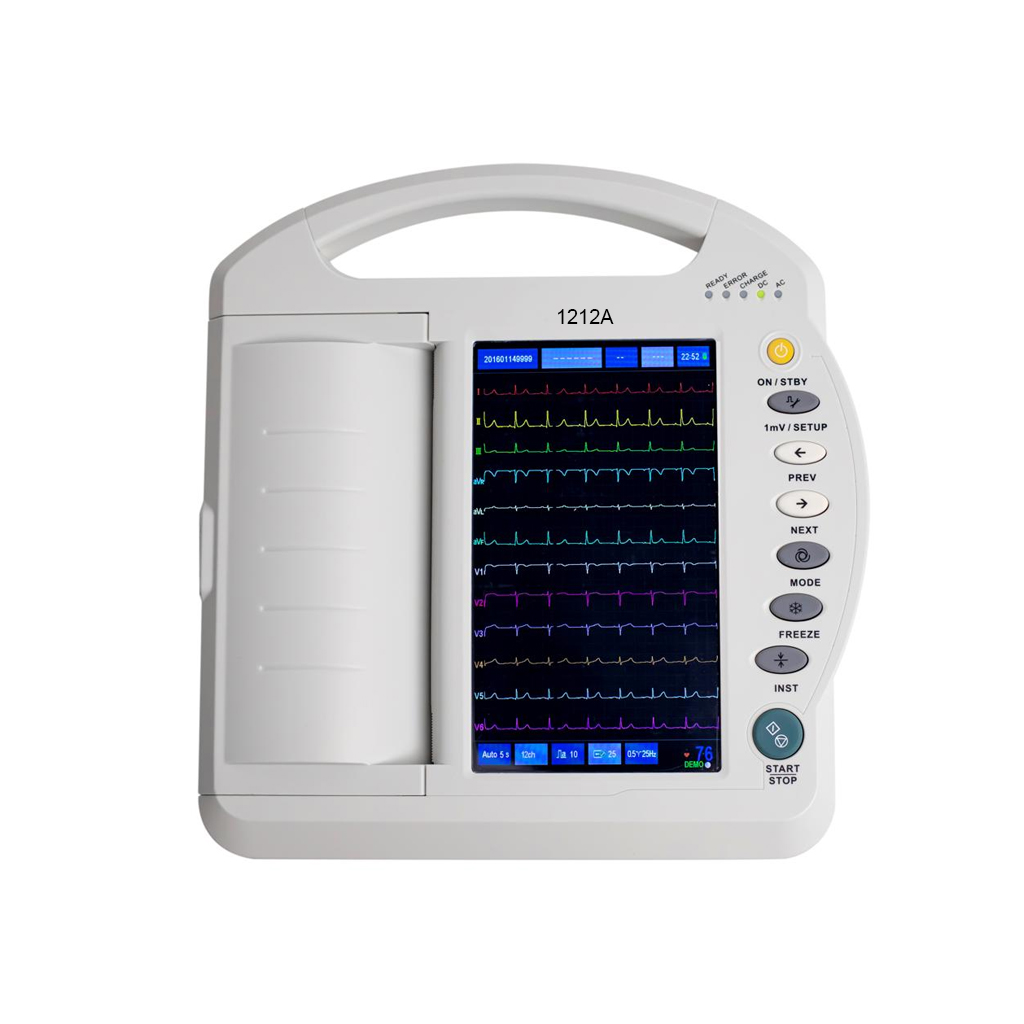

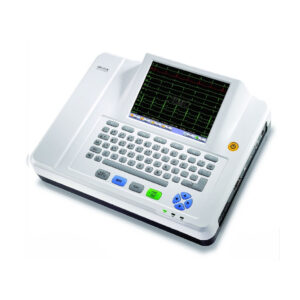

ECG Machine With Trolley

ECG Machine With Trolley

• Touchscreen display: 10-Inch
• 12-channel ECG machine with interpretation
• 12-lead ECG simultaneous acquisition
• Dimensions: 60x240x300mm
• ECG storage: 18000 events
• Waveform: Biphasic truncated exponential
• Color LED indicators for each step
• Energy sequence selectable: 50J to 200J for different age groups and situations
• Loud speaker: High quality speaker design provides great and loud sound that makes it easy to hear the device’s instructions in public places (5-levels volume)
• Guide line: Visual steps for using the device
• Written use instructions foe each step and key
• Buttons: Soft and waterproof buttons, IPX55 water & dust resistant
• 2 languages to choose from
• Daily, weekly and monthly self test
• Non-rechargeable battery: CR 123A – 4×2 2.8Ah 12 Volt, Li-Mn02 Cell
• Infrared data transmission
• Weight with battery: 1.9kg/4.2 Pounds
• Multiple operation modes: Manual, Auto, Arrhythmia analysis
• Capacity: 100 discharges at 200 Joules or 120 discharges at 150J.
• Print Channels: 12-channel recording with rhythm lead
• Digital filters eliminate EMG, AC, Baseline drift interference
• Built-in rechargeable Li-ion battery, 2 hours continuous working
• Adapt 110-240V, 50/60Hz AC power supply
• 250 patients save/replay
• Thermal paper: 216mm*20M thermal paper in Z-fold packers or in rolls
• Printing speed: 5; 6.25; 10; 12.5; 25; 50mm/s ± 3%
• Printing system: Thermal printer; ≥ 8dot/mm (Vertical), ≥40 dot/mm (Horizontal), printing speed at 25mm/s
• Recording sensitivity: 1.25,2.5,5,10,20,40mm/mV±2%
• Input dynamics: ±500 mV, Input impedance: ≥50Mohm
• Power Supply: 220V±10%, 50Hz±2%, 75VA, 14.8V 4400mA Li-poly rechargeable battery pack (DC)
• Frequency response: 0.05 to 150 Hz, Time constant: ≥3.2s
• Data acquisition: 12 bits; 8000 samples/sec when printing, filtering and computing
• Fuse Specification: Φ5x20mm 3.15A 250V
• Patient Cable: Standard 10 core
• Report storag: 200 reports in built-in memory, support external SD card report presentation, review and re-printing
• Filter: Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB), AC filter: (50Hz or 60Hz, -20dB) Drift filter: (0.5Hz,-3dB)
• Accessories: Thermal paper & power cable, Ground wire, ECG cables & Chest suction electrode & Limb electrode
