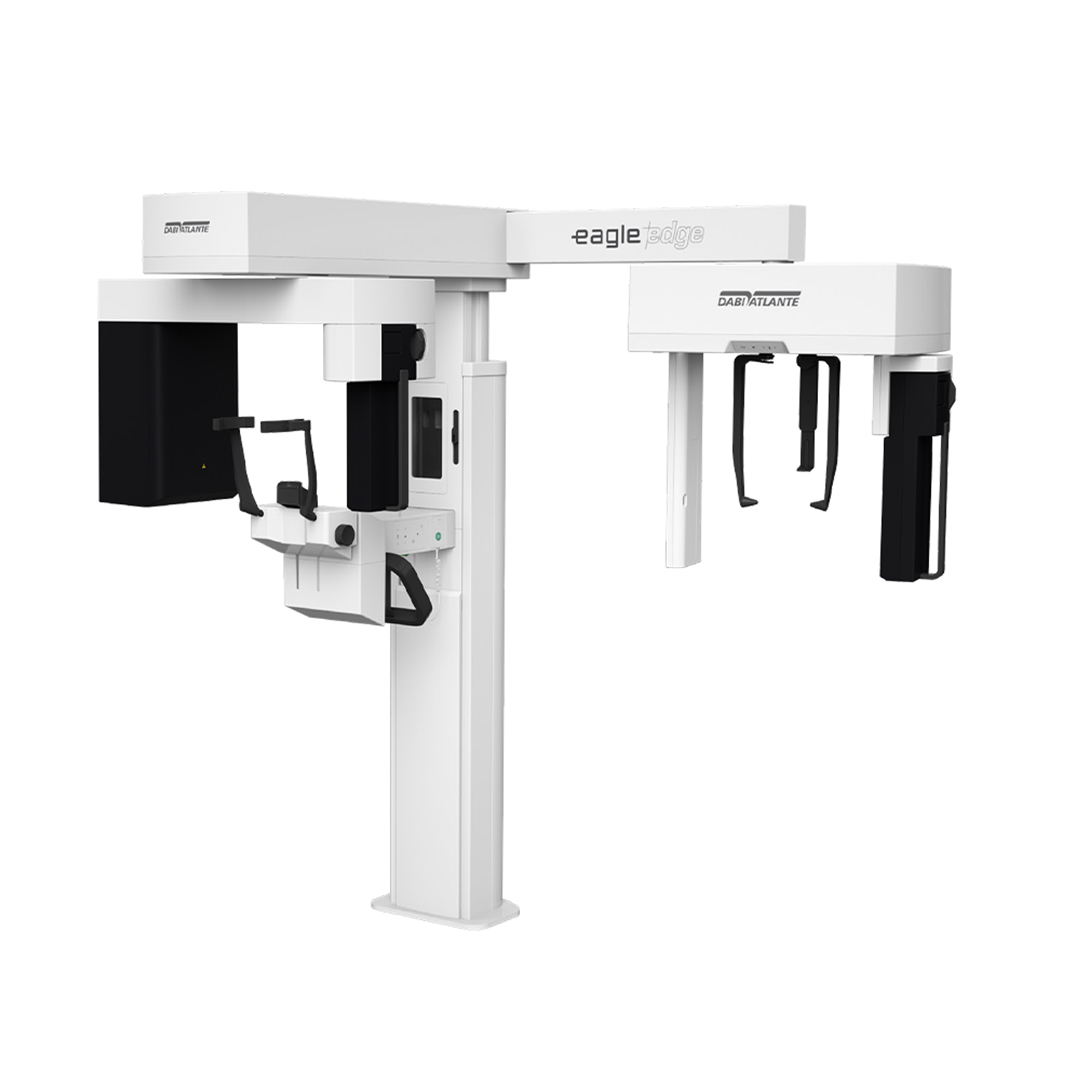

Gnatus Dental Tomograph Eagle OPG

Tube voltage: 60 – 90kV
Tube current: 1.8mA – 4.0mA
Nominal focal point: 0.2mm
Generator: High frequency
Supply voltage: 110/127/220/240 VAC
Power consumption: 1.7 kVA
FOV: 5x5cm (SFOV/MFOV), 6x9cm (SFOV/MFOV), 9x9cm (SFOV/MFOV)
Programmed doses time: LD-10s, STD-20s, HD-25s, UHD-25s
Voxel: 75 – 200?m
Voltage/Current Emission: 90kV – 1.8~4.0mA
Reconstruction time: 18s to 1m3s
Programs: AP/PA, ALL, Carpal, Obliqu: from 4.1 to 16.5s
Emission voltage/Anode current of exposures: Fast mode: From 2.5 to 10s, 60~70kV – 3.2~16.0mA, 72.5~80kV – 3.2~14.0mA, 82.5~90kV – 3.2~12.5mA
