1. General Specifications

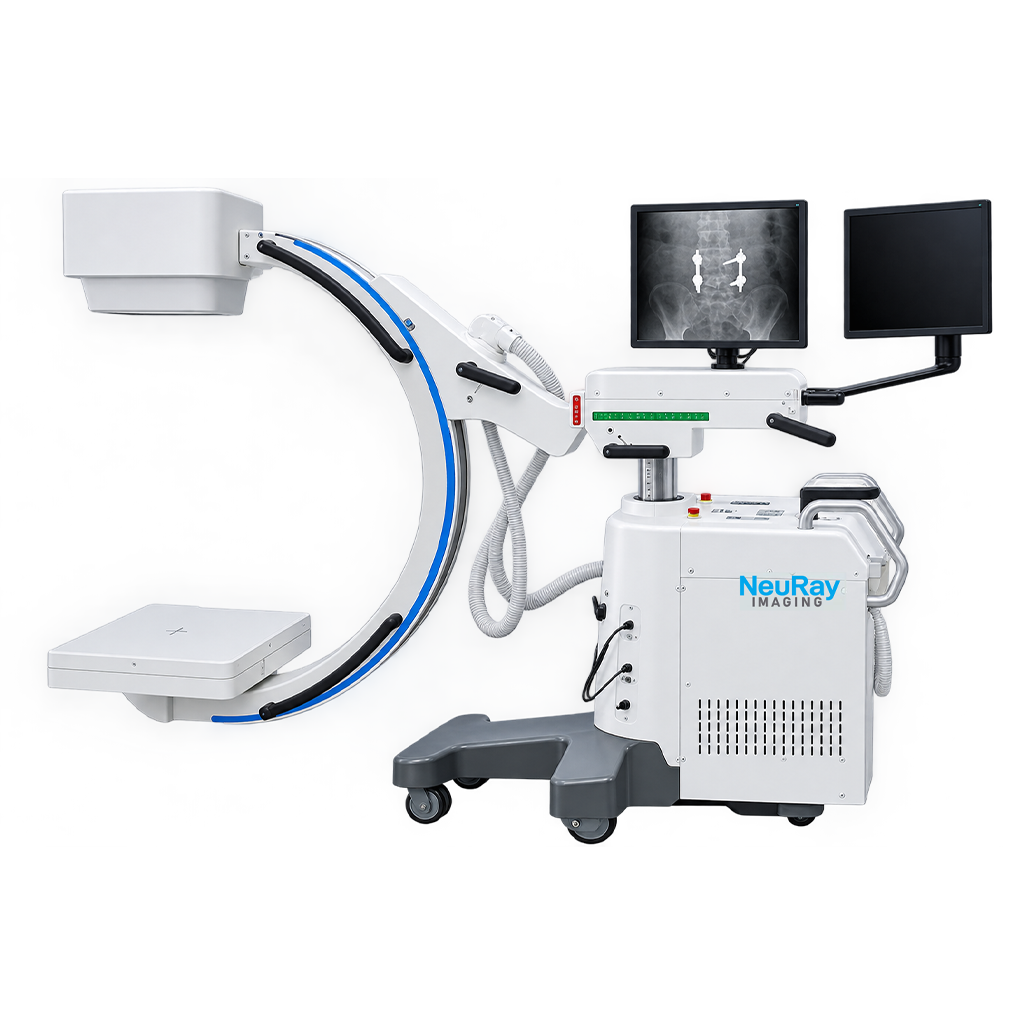

| Specification | Details |
|---|---|
| Brand | NeuRay |
| Model | RAC5 |
| Machine Type | Mobile Flat Panel Detector (FPD) C-Arm |
| Maximum Output Power | 5 kW |
| High-Voltage Generator | GeminiS Modular High-Voltage Generator |
| Inverter Frequency | 40 kHz |
| Detector Type | Dynamic Flat Panel Detector |
| Clinical Applications | Orthopaedics, spine surgery, vascular procedures, urology, pain management, trauma and general surgery |
2. X-Ray Generator Specifications
| Parameter | Specification |
|---|---|
| Photography Tube Voltage | 40–125 kV |
| Photography Tube Current | 0.5–100 mA |
| Fluoroscopy Mode | Continuous fluoroscopy |
| Continuous Fluoroscopy Voltage | 40–125 kV |
| Continuous Fluoroscopy Current | 0.5–12 mA |
| Pulsed Fluoroscopy Current | 4–36 mA |
| mAs Range | 0.2–100 mAs |
| Exposure Time Range | 10–1600 ms |
3. X-Ray Tube Specifications
| Parameter | Specification |
|---|---|
| Anode Type | Rotating anode |
| Focal Spot Sizes | 0.3 mm / 0.6 mm |
| Anode Heat Capacity | 200 kHU |
| Tube Housing Heat Storage Capacity | 1200 kHU |
| Anode Target Angle | 10° |
4. Dynamic Flat Panel Detector
| Parameter | Specification |
|---|---|
| Detector Brand | Iray |
| Detector Model | Mercu0909F |
| Imaging Area | 210 × 210 mm |
| Pixel Matrix | 1024 × 1024 |
| Pixel Size | 205 µm |
| Dynamic Range | 16-bit |
| Fluoroscopy Spatial Resolution | 3.6 LP/mm |
| Photography Spatial Resolution | 3.6 LP/mm |
5. Computer Workstation and Displays
| Parameter | Specification |
|---|---|
| Display Configuration | Three 19-inch Dell displays |
| Primary Display | Touchscreen |
| Secondary Displays | Two non-touch displays |
| Processor | Intel Core i5 |
| RAM | 16 GB |
| Storage | Listed as “1TB HDD” in the brochure scan; confirm with the manufacturer |
| Operating System | Windows 10 |
| Graphics | Dedicated graphics card |
| Display Resolution | 1280 × 1024 |
| Display Brightness | 250 cd/m² |
6. C-Arm Movement Specifications
| Parameter | Specification |
|---|---|
| C-Arm Movement | Manual |
| Arc-Shaped Sliding Range | −33° to +177° |
| Horizontal Axis Rotation | ±180° |
| Horizontal Travel Range | 0–200 mm |
| Vertical Travel Range | 0–400 mm |
| Swing Range | ±5° |
| Maximum Arc Arm Depth | 640 ± 10 mm |
| Free Space | 780 mm |
| Source-to-Image Distance (SID) | 980 ± 10 mm |
7. Imaging Features and Functions
-
Dynamic, real-time HD imaging
-
Digital Subtraction Angiography (DSA)
-
Automatic Brightness Stabilization (ABS)
-
Real-time noise reduction
-
Live-to-reference image comparison
-
Roadmapping for vascular and interventional procedures
-
Pre-programmed imaging modes
-
Motorized collimation
-
Removable anti-scatter grid
-
Dual footswitch for hands-free operation
-
DICOM 3.0 compatibility
-
Optional Dose Area Product (DAP) function
8. Design and Operational Features
-
Compact, mobile C-Arm design for operating-room use.
-
Large field of view for improved anatomical visualization.
-
Multi-directional positioning and movement.
-
Fully counterbalanced C-Arm.
-
Touchscreen-based system control.
-
Additional monitor cart for simultaneous dynamic and static image display.
-
Standby UPS feature, as described in the brochure.
