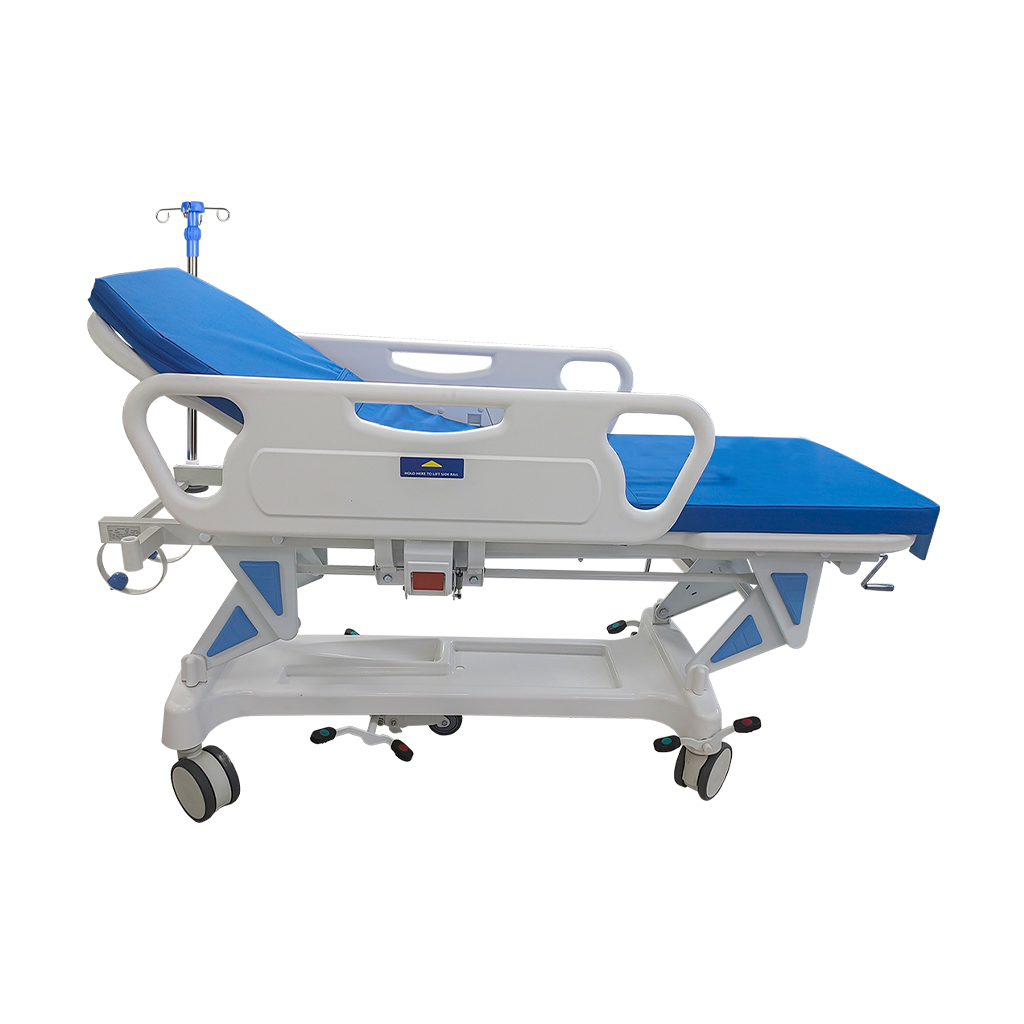

Stretcher Cart

• The bed frame is made of rectangular steel pipe: ≥30×50×1.5mm
• The bed is made of new engineering plastics, one blow molding, wall thickness: ≥3.5 mm. With beautiful appearance, high strength, corrosion resistance, easy to clean, no sanitary dead angle.
The screws are equipped with ABS dust caps
• Iron chrome plating, folding, flexible and convenient steel universal joints
• Screw, with two-way in place protection function; using “Two-way in place without limit protection” screw system, screw wall thickness ≥1.2 mm. 1-Hand-cranked lifting screw
The refined copper guide rail on the nut interacts with the metal chute to produce the bi-directional protection function
The lead screw adopts 45 steel twin-wire extrusion molding, interference protection, two-way limit function, shake flexible, with ABS dust cover
• A drip rack socket at the bed head and end with an aperture of 20mm, made of metal, with ABS engineering plastic inner core, to prevent damage and reduce noise
• Stainless steel two-stage telescopic four-claw drip rack, diameter 19mm, strong and durable
• 1-piece removable patient binding restraint to prevent patients from restlessness
• Two-piece plastic guardrail can be hidden, imported new PP engineering plastics
• Bed is equipped with oxygen cylinder storage base, metal surface spray powder using antibacterial environmental powder
• Single rocker lifting system: Long-term load without sinking
• Injection molded ABS engineering plastic chassis
• Sponge mattress: 6cm thick, high-grade waterproof cloth
• 4-Casters with built-in self-lubricating bearings: D: ≥150mm. The fifth wheel adopts shock absorption type and shock absorption 3.5 * 31.5 * 105 pressure spring
• Brake system: One-foot central control brake, one-foot brake four-wheel positioning
• Imported mute gas spring back plate lifting system: 304 stainless steel electrolytic process back gas spring lifting handle
• Adjustable back: 0-75°, Adjustable legs: 0-45°
• Overall lifting range: 0-300mm, Bed load bearing capacit: 250kg
• Bed weight: ≥70kg, one-leg central control braking system
• 1 piece IV stand & 1 piece Oxygen cylinder rack
• Automotive paint process: Car body metal surface treatment using double coating technology
• Electrophoresis technology: The inner wall and the surface of the metal tube are coated with a epoxy protective film and then sprayed with electrostatic powder to prevent the inner and outer rusts and prolong the service life of the hospital bed
• Welding technology: Deep penetration, high wire melting rate, smooth weld, solid. Welding, anti-rust treatment without blind point, surface no edge, Burr, the whole bed strengthening, strengthening treatment to ensure safe and reliable.
