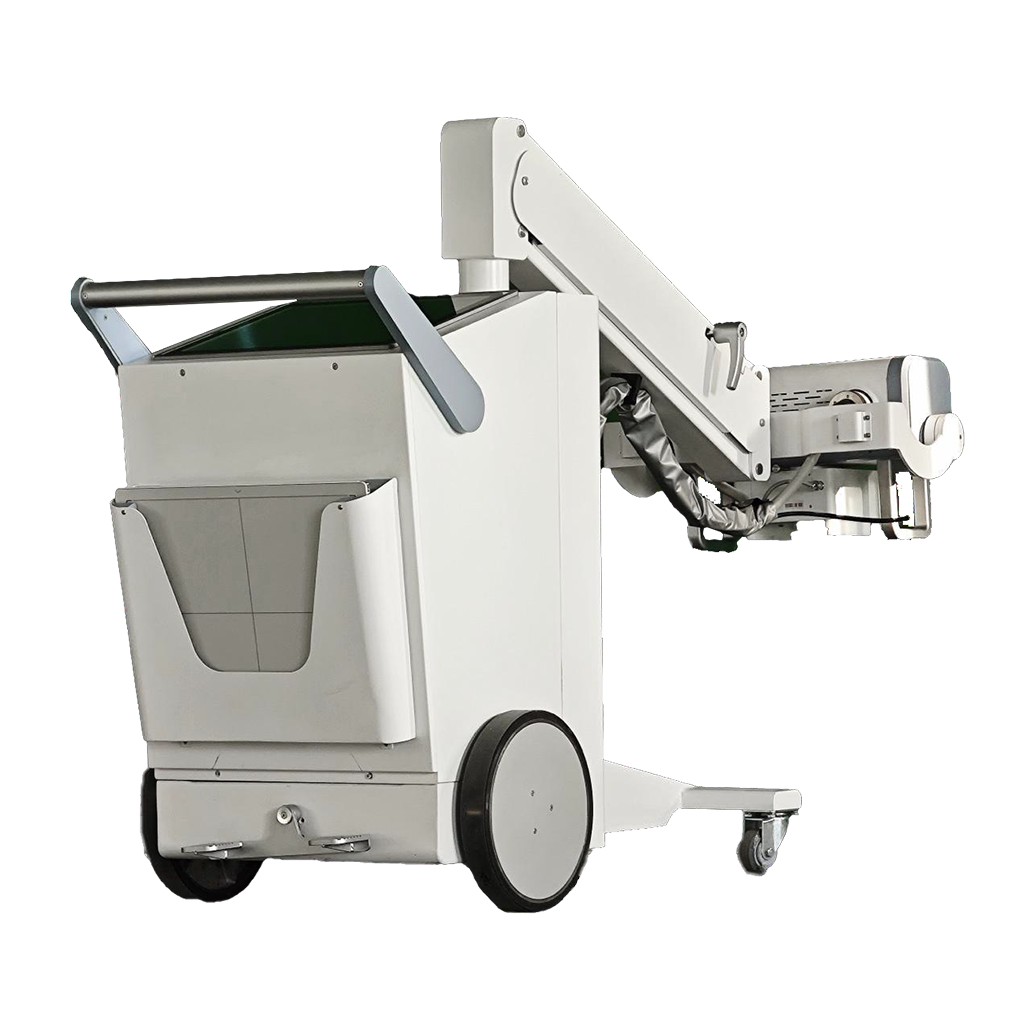

X-ray Machine Mobile Digital Radiography INW-32kW

• 19-inch LCD touch screen display with a maximum resolution of 1280*1024
• CPU: ≥2.0GHz, Memory: ≥2GB
• Ambient temperature: 100C~400C
• Relative humidity: 30%~75%
• Atmospheric X-ray Generator: 70~106kPa
X-ray Generator
• Output power: 32KW
• Frequency: 30KHz
• Current: 10~400mA
• Voltage: 40~125KV
• mAs: 0.1~320mAs
• Exposure time: 1ms~10000ms
• Intelligent self-protection system
X-ray Tube
• Rotating Anode type
• Focal Spot value: 1.0mm/2.0mm
• Power of focal spot: 21kW/42.5kW
• Maximum voltage: 125KV
• Revolving speed of anode: 2800rpm
• Inherent filtration: 1.5mmAl
• Anode heat storage capacity: 100kJ(140kHU)
• Heats torage capacity: 900kJ
• Anodeangle: 16°
• Maximum anode heat dissipation: 475W(40kHU/min)
Manual Collimator
• Maximum window: 440mm×440mm (SID=100cm)
• Lamp: AC/DC24V, 5W & Lamp timer of 30s automatic illumination
• Inherent filtration: 1.0mmAl
• Illuminant: LED
