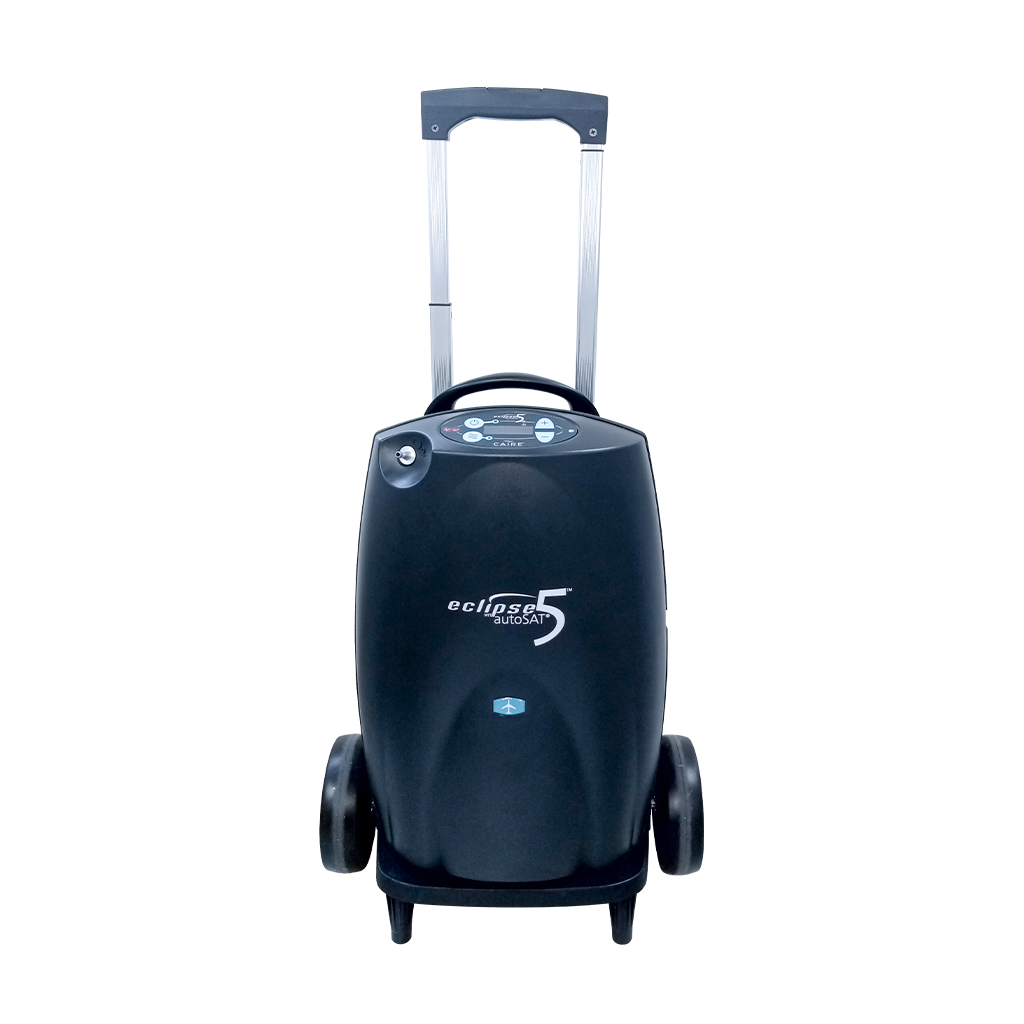

Continuous flow portable oxygen concentrator producing up to 3.0 LPM with pulse settings 1-9 with a bolus size up to 192 mL. The device can cover the most users and give them unlimited ambulation. The Eclipse – 5 is robust enough to run 24/7 and can be used by a patient during sleep, at home and on the go. Continuous flow options eliminate the worry of desaturation during sleep, and the high pulse output allows even the most difficult-to-treat patients to be active with a portable device and
lengthy battery life.
The device Features autoSAT- technology that detects the user’s breath rate and automatically adjusts the motor speed to ensure oxygen is always delivered with every breath. This helps to maintain consistent FiO2, even in high flow patients.
Continuous Flow: 0.5 – 3.0 LPM
Pulse flow: Settings: 1 – 6 (16 – 96 mL), Settings: 7 – 9 (128 – 192 mL)
Weight (without battery) & Dimensions: 18.4 lbs/8.3 kg, 19.3 x 12.3 x 7.1 inches
O2 Concentration: 90% (+5.5 / -3 %)
Sound Level: 40 dB(A) @ Pulse Setting 3
Operating Temperature: 50oF to 104oF (10oC to 40oC)
Operating Altitude: Up to 13,123ft (4,000 m)
Battery Duration: LPM Continuous – 2 Hours, Setting 2 Pulse – 5.1 Hours, Battery re-charge: 2 – 5 hours dependent upon flow
Power: AC Power: 100 – 240 VAC, 50 – 60Hz, DC Power: 12 V Nominal, Power Draw: 145 W @ 3 LPM, 45 W Battery Charging
Warm-Up time: < 5 Minutes
