Features
• X-Ray Beam: Cone Beam
• FOV (CT): 16 × 10 cm, 8 × 8 cm, 4 × 4 cm
• Tube Voltage Range: 60–100 kV
• Tube Current Range: 6–10 mA
• Focal Spot: 0.5
• Voxel Size: 0.10, 0.15, 0.20, 0.25, 0.30 mm
• Spatial Resolution – CT: 2.0 lp/mm
• Spatial Resolution – Panoramic: 3.0 lp/mm
• Spatial Resolution – Cephalometric: 2.5 lp/mm
• Detector – CT & Panoramic: CsI + TFT array
• Detector – Cephalometric: CsI
• Image Gray Scale: 16 bits
• CT Scan Time: 9 s or 18 s
• Panoramic Scan Time: 6 s or 14 s
• Cephalometric Scan Time: 8 s or 6 s
• Reconstruction Time: ≤60 s
• Patient Positioning: Standing / Seated / Wheelchair accessible
• Installation: Upright
• Controls: Laser light, touch pad, exposure & image capture; workstation
• Device Dimensions: 1893 × 1242 × 2281 mm
• Device Dimensions (inches): 74.5 × 42.9 × 89.8 inches
• Device Weight: 220 kg / 485 lb (±10%)
• Workstation OS: Windows 11, 64-bit
• Workstation Memory: 16 GB RAM or more
Product Size / Movement
Product longitudinal height range: 1581–2281 mm
Overall litiable height range: 700 mm
Longitudinal column movement range: ≥600 mm
Product weight: 220 kg, excluding outer packaging, tolerance ±10%
Imaging Functions

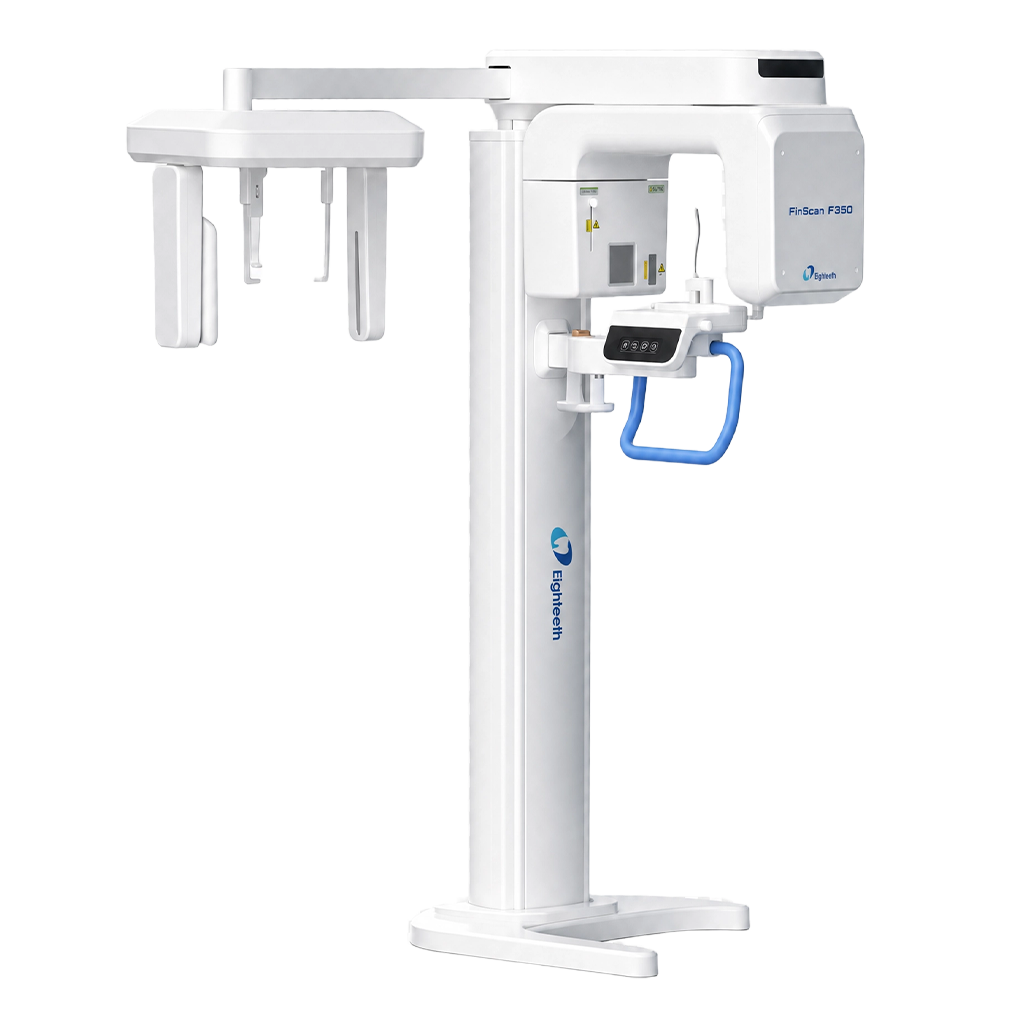

The F350 is presented as a 3-in-1 imaging system providing:
• CBCT imaging
• Panoramic imaging
• Cephalometric imaging
• Smart software for diagnosis, planning and communication
• Standing, seated and wheelchair-accessible positioning
