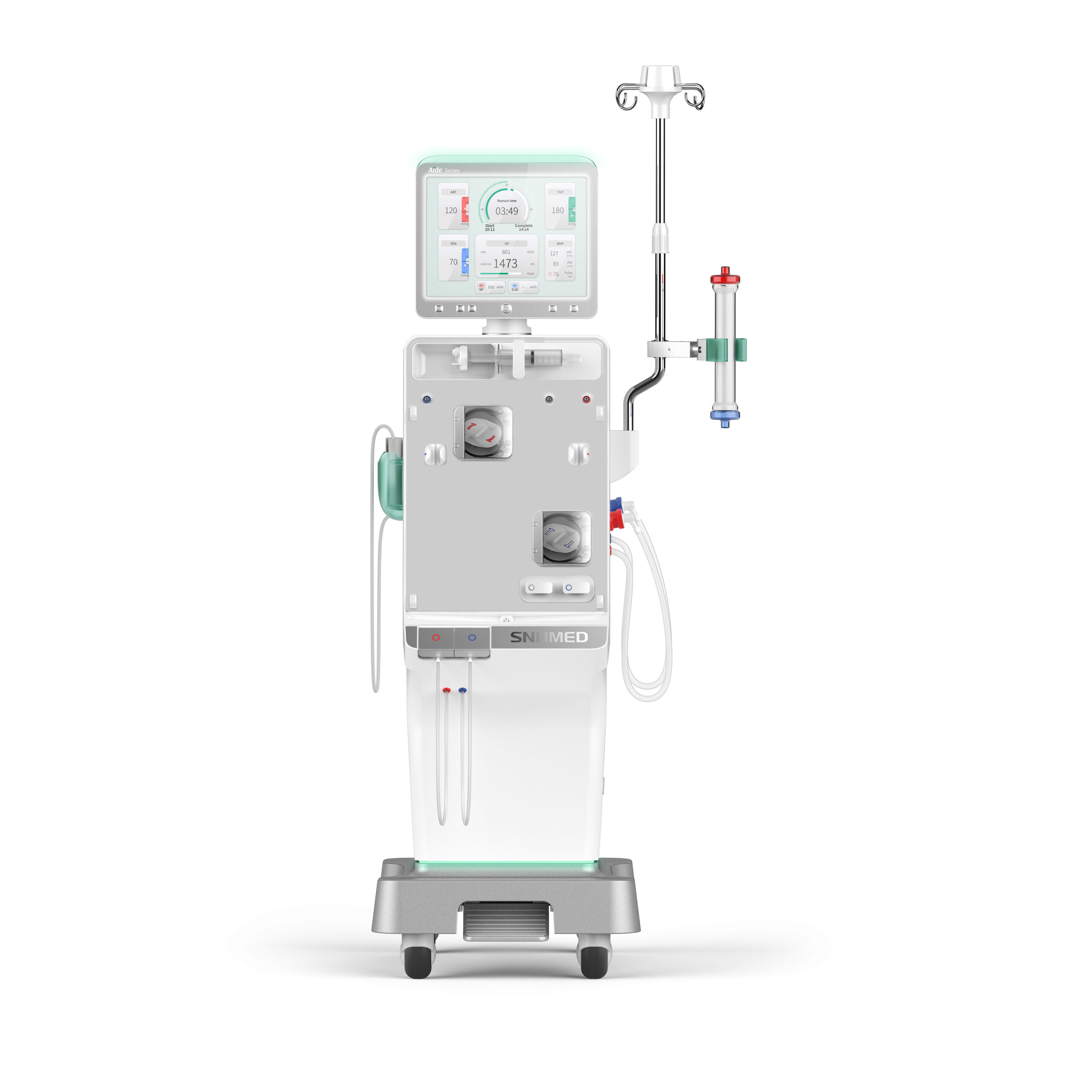

Hemodialysis Machine – Dual Pump (Aide 2)

Configuration
Hemodialysis (HD)
Isolated Ultrafiltration (ISO)
Online Hemodiafiltration (Online-HDF)
Online Hemofiltration (Online-HF)
Integrated substitution pump
Single-pump single-needle operation
Heparin pump
Double ultrapure dialysis module
Blood Pressure Monitoring (BPM)
Kt/V monitoring
Dimensions (H x W x D): 1507 x 504 x 710 mm
Weight: Approx. 102 kg
Water Supply: 0.05 to 0.65 MPa, 5°C to 35°C
Power Supply: 230 V AC (±10%), 50/60 Hz (±2%)
Battery: Backup support for more than 30 minutes
Extracorporeal Circuit
Arterial Pressure: -700 mmHg to +700 mmHg
Venous Pressure: -700 mmHg to +700 mmHg
Transmembrane Pressure: -700 mmHg to +700 mmHg
Blood Pump Flow Rate: 0 to 700 mL/min
Heparin Pump:
Flow Rate: 0 to 10 mL/h
Syringe Sizes: 10 mL, 20 mL, 30 mL, 50 mL
Bolus: 0 to 20 mL
Air Bubble Detection: Ultrasound measurement with additional optical monitoring
Dialysis Fluid Circuit
Dialysate Flow Rate: 100 to 800 mL/min
Dialysate Temperature: 33.0°C to 40.0°C
Dialysate Conductivity: 0 to 18 mS/cm
Ultrafiltration (UF) Rate: 0 to 4000 mL/h
Substitution Fluid Flow Rate: 10 to 450 mL/min
Blood Leak Detection: 0.35 mL/min (Hct: 32%±5%)
Cleaning Programs
Rinse, Hot Rinse, Thermal Disinfection, Chemical Disinfection, Central Disinfection, Custom Disinfection
