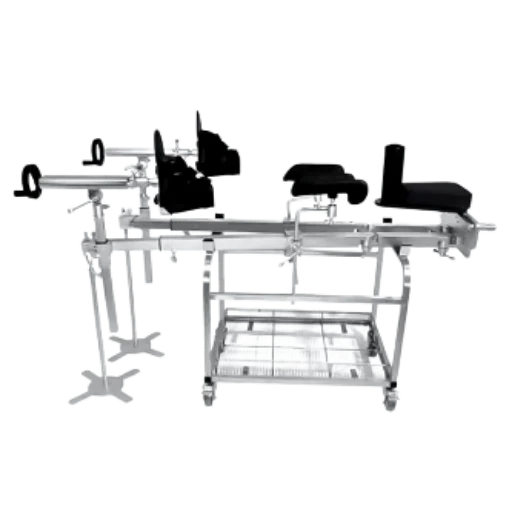

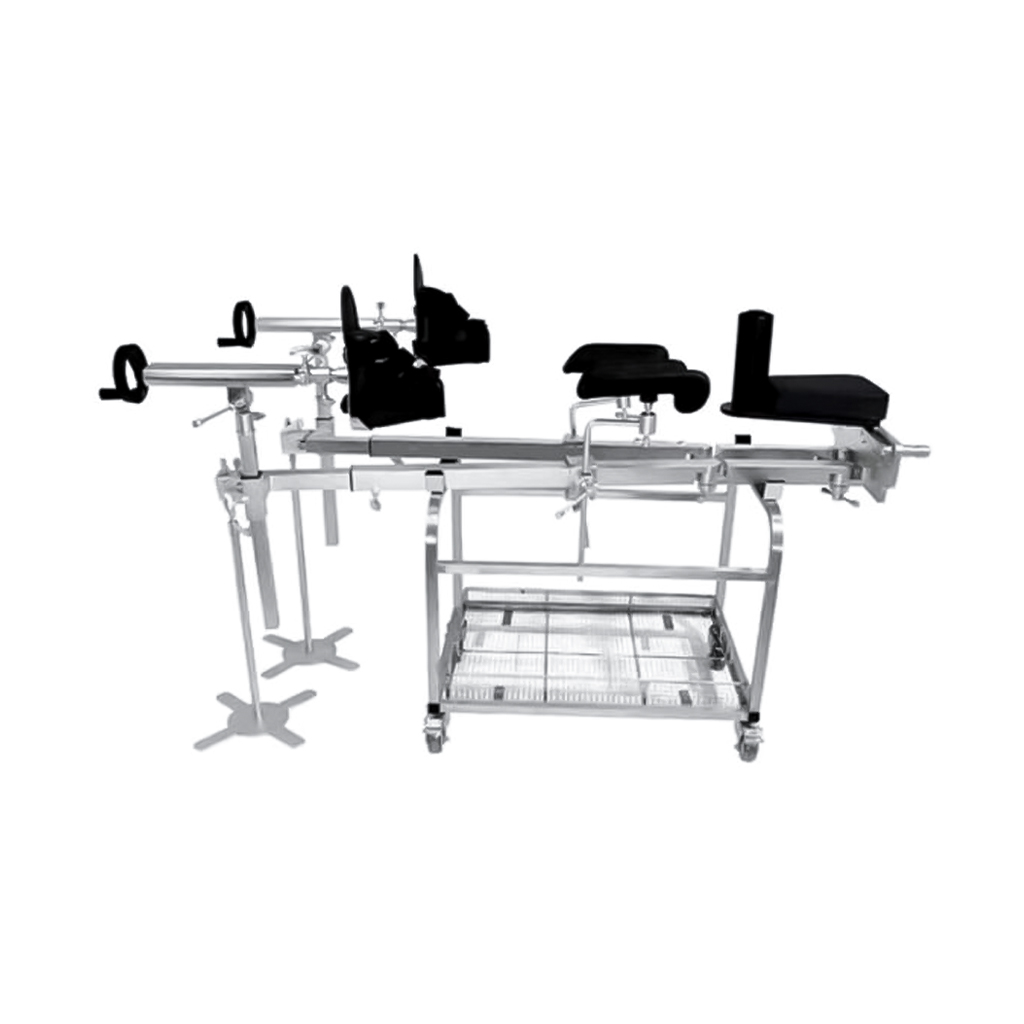

Multi-Purpose Orthopedics Traction Frame

Multi-Purpose Orthopedics Traction Frame

This traction frame is made of 304 stainless steel, the key Angle adjustment parts are tightened by the end-tooth fastening technology, and the key parts are formed by precision casting.

Technical Parameters

• Overall lifting height rise and fall with the operating table
• Extension rod (short) abduction: ≥ 180°
• Extension rod (short) length: 310mm
• Extension rod (long) abduction: ≥ 300°
• Extension rod (long) length: 800mm
• Horizontal displacement of traction mechanism: ≥ 650mm
• Vertical displacement of traction mechanism: ≥ 380mm
• Horizontal rotation angle of traction mechanism: 360°
• Vertical rotation angle of traction mechanism: 360°
• Traction shoe rotation angle: 360°
• Traction travel distance: ≥ 190mm
• Leg rest displacement: ≥ 650mm
