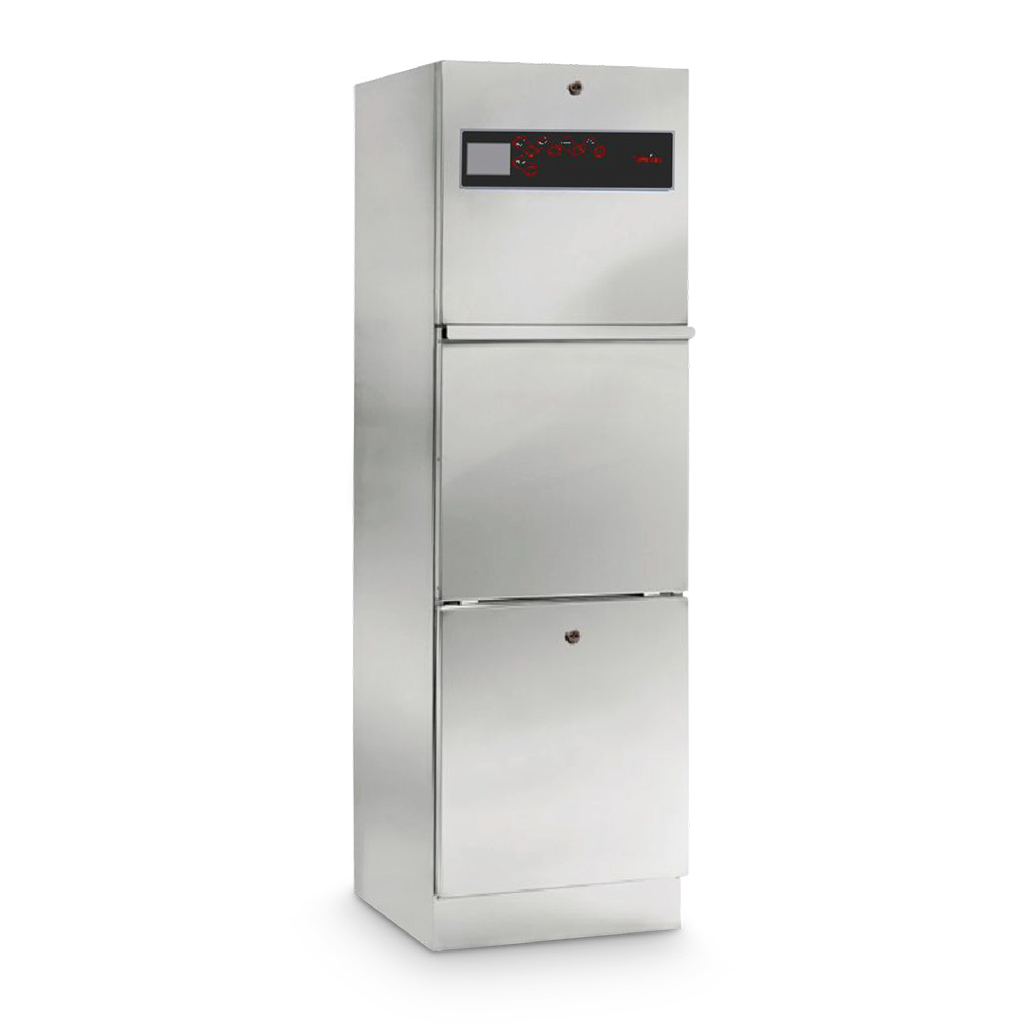

Column floor-mounted with plinth, wall or floor drain trap connection.
Thermal disinfection with built-in steam generator
Dimensions (mm): 450 x 500 x 1500
Technical Features / Specifications
– Standard
+Optional
+Optional
| Feature | REVO |
|---|---|
| MDD 93/42/EEC ISO 15883-1, 15883-3 certifications | – |
| Manufactured in AISI 304 (DIN 1.4301) stainless steel Scotch Brite finish | – |
| Wall or floor drain complete with DCS (Drain Control System) | – |
| Control keyboard with 40 characters LCD display showing different phases in the cycle, alarm messages, disinfection temperature and “A0” value > 60 according to EN ISO 15883-3 | – |
| Complete with 3 washing programs – keyboard started NORMAL for solid waste – ECONOMY for liquid waste – INTENSIVE for tough waste |
– |
| ENC – Electronic Nozzles Control : Intelligent control of water flow, pressure and injection system to improve the washing performance | – |
| Thermal disinfection with a built in steam generator 3,2 kW complete with water level monitoring probe and a safety thermostat | – |
| Softener/Detergent dosing pump complete with level monitoring in the canister and adjustable dosage control keyboard | – |
| SDS (Self Disinfection System) Auto disinfection system starts a program if the machine is not used for more then 24 hours (EN ISO 15883-1 p.5.3.1) | – |
| PT1000 Temperature sensor in the washing chamber | – |
| DWC – Disinfected Water Cooling: Automated system to disinfect the water used in the final rinse. | – |
| ETS – Empty Total System : System to automatically empty all the water present at the end of each cycle from the water pump. | – |
| ACS (Air Cooling System) – After the disinfection phase cold air will be introduced in the washing chamber to cool down the temperature, partially dry the containers and prevent the aerosol effect for the operator and the thermodynamic contamination of the room | + |
| The customers can also choose whether to install one of the following: – Bluetooth module: allows wireless communication between Tuttnauer device and Android devices (with Tuttnauer APP installed) – USB module: to upload dataset firmwares, etc. via USB flash drive |
+ |
