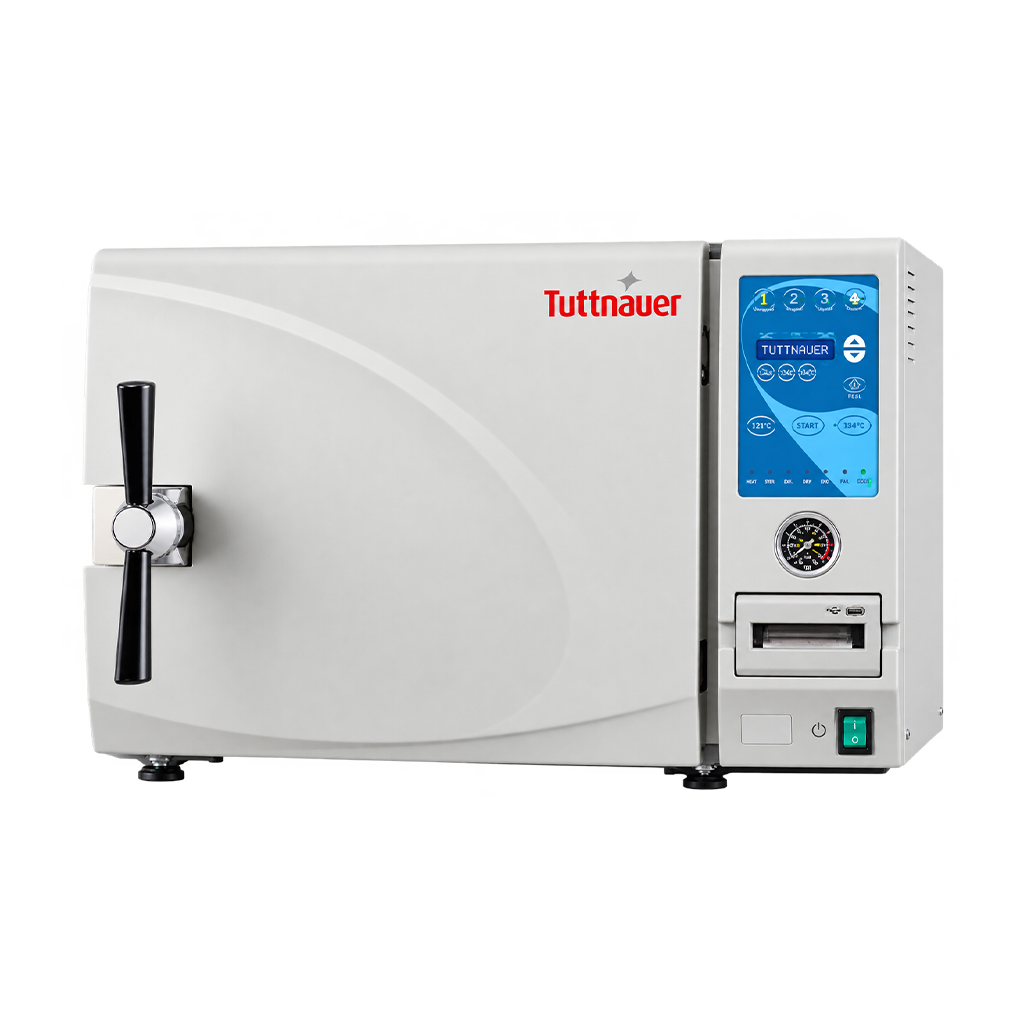

Class S autoclaves feature an air pump for fast closed-door active drying. Class S autoclaves are suitable for porous loads and wrapped instruments (Dry packs & Pouches).
Features:
• More thorough drying and sterilization
• Faster drying for a shorter overall cycle
• 0.2 µm HEPA air filter provides sterile, bacteria-free air for drying
• Program and customize cycle parameters to meet your needs
• High precision control system for accurate sterilization results
• Integrated printer for cycle documentation (optional)
• PC Communication port enables storage of sterilization results
• Temperature and pressure monitoring
• User friendly, intuitive display
• Cycle information recovery in the case of power failure or cycle interruption
• Insufficient water detector with automatic shutoff
• Consistent monitoring of temperature and pressure for real time accurate results
• 4 pre-set sterilization programs
• Seamlessly integrated into your work environment with compact design and heat insulation
• Durable 316L type stainless steel chamber and door with electro polish finish
• Double locking safety device prevents door from opening while chamber is pressurized
• Control lock-out switch prevents starting a cycle if door is not properly locked
• Door failure protection prevents door from opening at high pressure
• Automatic safety shutoff prevents overheating
| Model | Chamber Volume | Cassette Capacity | No. of Trays | Tray Dimensions (mm) | Voltage(V), Frequency (Hz) | Current(A), Power(W) | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| EA Series | ||||||||
| 3850EA | 65 Liter | 10 full | 2 | 495x25x286 495x25x350 |
230V, (50/60 Hz) | 10.4A 2400W | 660x525x695 | 70 |
| 3870EA | 85 Liter | 15 full | 2 | 675x25x286 675x25x350 |
230V, (50/60 Hz) | 13A 3000W | 660x525x875 | 81 |
| EKA Series | ||||||||
| 2540EKA | 23 Liter | 3 full/3 half | 4 | 168x20x414 | 230V, (50/60 Hz) | 9.6A 2200W | 508x362x550 | 37 |
