| Specifications | |
|---|---|

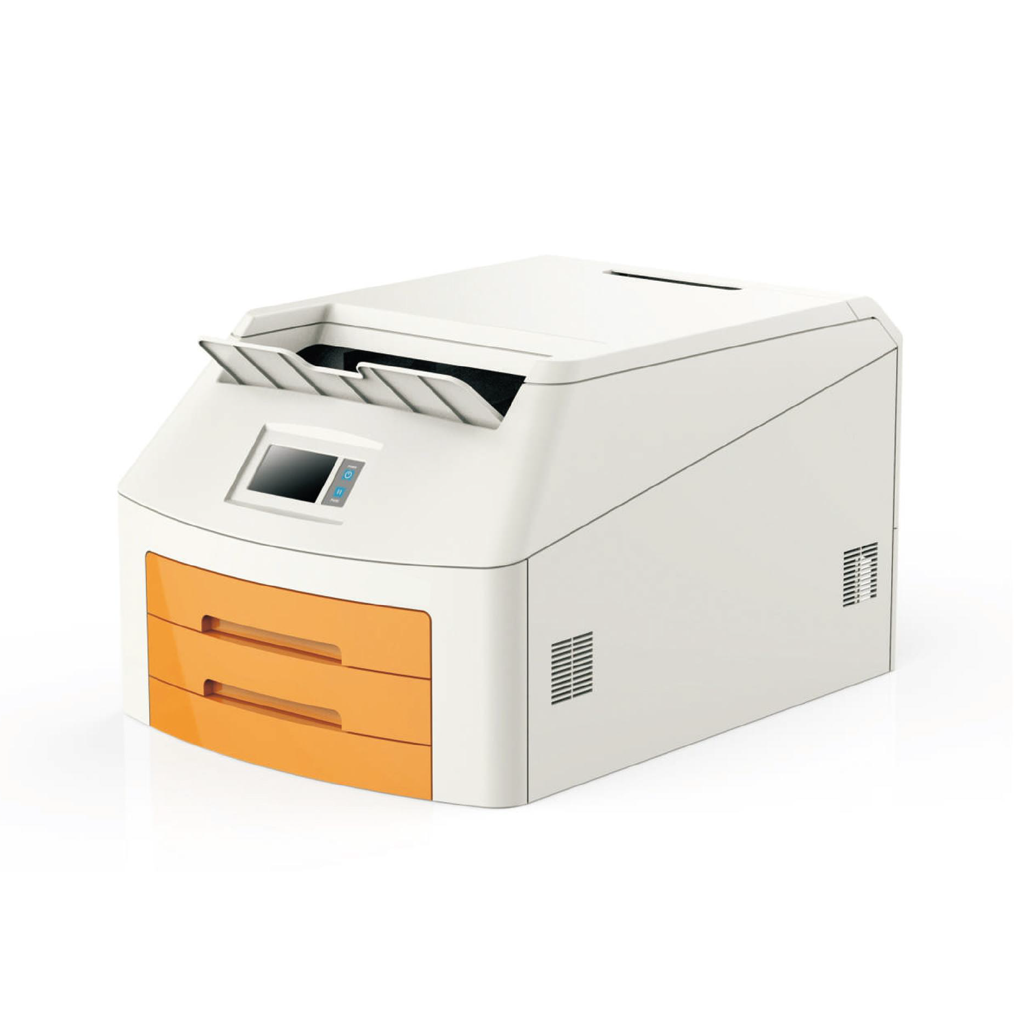

| Model | HQ-460DY |
| Print Technology | Direct thermal (dry, daylight-load film) |
| Spatial Resolution | 320dpi (12.6 pixels/mm) |
| Throughput | 14″×17″ ≥ 70 sheets/h; 8″×10″ ≥ 90 sheets/h |
| Grayscale Resolution | 14 bits |
| Film Transferring Method | Rubbing |
| Film Tray | Two supply trays, 200-sheet capacity total |
| Film Sizes | 8″×10″, 10″×12″, 11″×14″, 14″×17″ |
| Applicable Film | Medical Dry Thermal Film (blue or clear base) |
| Interface | 10/100/1000 Base-T Ethernet (RJ-45) |
| Network Protocols | Standard DICOM 3.0 connection |
| Image Quality | Automatic calibration using built-in densitometer |
| Control Panel | Touch Screen, Online Display, Alert, Fault and Active |
| Power Supply | 100-240V AC 50/60Hz 600W |
| Weight | 50Kg |
| Operating Temperature | 5°C-35°C |
| Operating Humidity | 35%-85% |
| Storage Humidity | 30%-95% |
| Storage Temperature | -22°C-50°C |
| Base Holding | Optional |
